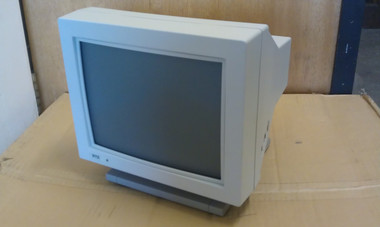

Wyse Wy-120 Text terminal only.

900311-02 (Green) 900311-05 (White) 900311-08 (Amber)

 Original "2 port" version of Wyse 120.

25pin D type comms, 25pin D type paraller printer port

Keyboard optional extra.

Mulitpersonality General Purpose Terminal

Technical Details - Wy120

WY-120 and WY-120ES (obs. Replaced with WY-120e) The WY-120 and WY-120ES multi- personality display terminals are designed to work with the widest range of computers and applications, and set an Ergonomic Standard for the industry. Its repertoire of personalities, unparalleled ergonomics, and low emissions make the WY-120 the top model of its class. SURPASSING THE STANDARDS FOR MULTI-PERSONALITY PERFORMANCE Unlike traditional host-specific terminals, the WY-120 and WY-120ES work in a broad spectrum of environ- ments. The WY-50 mode, offering superior compatibility with the most popular ASCII terminal, is only one of its ten operating modes. ASCII, ANSI (such as VT220), and PCTerm personalities handle traditional mini- computer and mainframe environments, as well as super multi-user micros using 386, 486 and 68030 processors. Advanced setup and connectivity features make installation fast and easy, to virtually any computer system. WYSE ERGONOMICS The WY-120 and WY-120ES deliver state-of- the-art integration with three display modes, including positive mode for black characters on a true paper-white back- ground. Wyse uses a high quality, extra fast 78 Hz refresh rate to virtually eliminate screen flicker, then adds borderless full-screen video against a white bezel for further viewing comfort. An optional height-adjustable arm offers the ideal viewing angle while freeing desk space. THE EMISSIONS STANDARD For those who want low emissions, the WY-120 ES is the terminal of choice. It conforms to guidelines for electrostatic, very low, and extremely low frequency electromagnetic emissions recommended in the Swedish MPR 1990:10 publication (MPR II). In fact, the WY-120 ES also meets the toughest regulatory requirements worldwide. WYSE HAS IT ALL World-class ergonomics, safety, display integration and a broad range of personalities provide the style and performance Wyse terminals are know for.

DETAILED SPECIFICATIONS
-----------------------

• Technology

  CPU:
  11MHz 8032 microcontroller
  MEMORY:
  24KB high-speed static CMOS RAM
  VIDEO:
  Up to 7 pages of screen memory
  VIDEO PROCESSOR:


• Power

  INPUT:
  220 VAC
  RANGE:
  220/240VAC ±10%; 50Hz ±10%
  INRUSH:
  not given
  CONSUMPTION:
  45 Watts
  FUSE:
  2A, 250V


• Display Features

  MONITOR SIZE:
  14 inch diag, flat, non-glare CRT
  IMAGE SIZE:
  Borderless, 24.5cm x 18.5cm
  COLORS:
  P-188(paper white), P-31(green), P-13(amber)
  REFRESH:
  Flicker-free, 78Hz or standard 50Hz; non-
  interlaced
  RESOLUTION:
  Up to 1188 x 416 pixels
  ADJUSTMENTS:
  Tilt & swivel
  USER CONTROLS:
  Clustered brightness, contrast and power


• AlphaNumeric Features

  COMPATIBILITY:
  WY-120/50/50+, ADDS Viewpoint A2, TeleVideo
  TVI-925/910+ DEC VT220, DEC VT100, DEC VT52;
  PC terminal
  SCREEN:
  26 lines x 80 or 132 columns Variable speed
  smooth/jump scroll; status line, key click, and
  screen saver
  CURSOR:
  Block or underline; blink, steady or off
  FONTS:
  Simultaneously program and display 512 unique characters
  and symbols
  CHARACTER CELLS:
  80 columns: 10x16 or 10x13 cells
  132 columns: 9x16 or 9x13 cells
  ATTRIBUTES:
  Normal, dim, bold, blank, all combinations of reverse,
  underline and blink; choice of double high
  and/or double wide per line


• Keyboard

  DESIGN:
  Low profile with two position tilt; detached
  with 1.5m (5 feet) coiled cable
  CUSTOMIZATION:
  User-definable editing and function keys; up to
  66 key combinations (with SHIFT and SELECT)
  600 bytes of non-volatile memory
  LAYOUT:
  Choice of International Enhanced PC (103 keys),
  Wyse ASCII (101 keys), Wyse ANSI (101 keys) and
  Wyse ANSI (105 keys)
  LANGUAGES:
  Danish, UK English, French,French/Belgian, French/Canadian,
  German, Italian, Latin American Spanish, Norwegian, Spanish,
  Swedish, Swiss German/French
  OPTIONS:
  Localization kits


• Physical Characteristics

  TERMINAL:
  Width: 34.0cm (13.4 in) Depth: 31.0cm (12.2 in)
  Height: 31.8cm (12.5 in)
  FOOTPRINT:
  Less than 24cm x 24cm (9.5 in x 9.5 in)
  KEYBOARD:
  Enhanced PC ( 103 keys) / Wyse ANSI (105 Keys)
  Width: 47.5cm (18.7 in) Depth: 17.5cm (6.9 in)
  Height: 5.7cm (2.25 in)
  KEYBOARD:
  Wyse ASCII (101 keys)
  Width: 43.8cm (17.25 in) Depth: 19.3cm (7.6 in)
  Height: 5.7cm ( 2.25 in)
  KEYBOARD:
  Wyse ANSI (101 keys)
  Width: 46.4cm (18.25 in) Depth: 19.3cm (7.6 in)
  Height: 5.7cm ( 2.25 in)
  SHIPPING WEIGHT:
  Terminal and Keyboard: 11.34 kg (25 Lbs)
  BOX:
  not given


• Environmental

  TEMPERATURE(NON-OPERATING):
  -10° TO +60° C
  TEMPERATURE (OPERATING):
  10° to 40° C
  HUMIDITY:
  20% TO 80% non-condensing
  ALTITUDE(NON-OPERATING):
  not given
  ALTITUDE:
  Sea level to 10,000 feet


• Video Electrical

  REFRESH:
  Flicker free 78Hz or standard 60Hx; NI
  BRIGHTNESS(MAX):
  White-45+7-3fL; Green-70+7-3fL; Amber32+7-3fL
  Raster-1.0fL(+0.4-0.2)
  LINEARITY:
  Horizontal/Vertical-10%
  CENTERING:
  Horizontal- <7.0mm; Vertical - <6.0mm
  PIN CUSHION:
  <1.86mm
  TILT:
  ±1.5mm


• Regulatory

  ERGONOMICS:
  SF 1990 VDT TUV-GS (ZH1/618)
  SAFETY:
  UL1950 and CSA950; TUV-GS (including VDE 0806)
  (Selected models)
  EMI/RFI:
  FCC Class A; VDE 0871, Class B Radio Protection Mark
  (Selected models)
  EMISSIONS:
  In selected configurations for Scandinavia, the
  WY-120 also meets or exceeds these
  specifications:
  Low-Frequency Magnetic fields
  Magnetic Field (B) < 100 uT (0.3m)
  Magnetic Pulses (dB/dt) < 25 mT/s (0.3m)
  Electrostatic Fields < 500 V/m (0.3m)


• Models/Part Numbers

  MODELS:
  WY-120 Green 900311-02 (obs.)
  WY-120 Green (VDE) 900311-03 (obs.)
  WY-120 White 900311-05 (obs.)
  WY-120 White (VDE) 900311-06 (obs.)
  WY-120 Amber 900311-08 (obs.)
  WY-120 Amber (VDE) 900311-05 (obs.)
  (Models were replaced by the WY-120e)
  OPTIONS:
  height adjustable arm



• Communications/Ports

  MODES:
  Full/half duplex, block, local, monitor (debug)
  MAIN:
  RS-232, DB-25F connector; up to 38.4Kbaud
  PRINTER:
  Choice of ports selectable through set-up; Centronics parallel.
  female DB-25 connector; RS-232 Serial, DB-9 connector,
  up to 38.4 Kbaud
